KEC5021 is an USB input and output module, by which a operation panel for a compute based
system can be designed simply at low cost.
KEC5020 connects with PC by USB port with plug-and-play USB connectivity. No special USB
driver is requests. A SKD software package includes DLL library for output control, verification
application and development samples.
Specification
|
|
8 which correspond to hot keys F5-F12
|
|
|
16 Darlington Open collector output (TD62083)
Max sinking current 200mA/ch
Highest sustaining voltage 40V
|
|
|
34 pin flat cable connector
(Cable at length 1.2m with connector is attached)
|
|
|
|
|
|
|
|
|
|

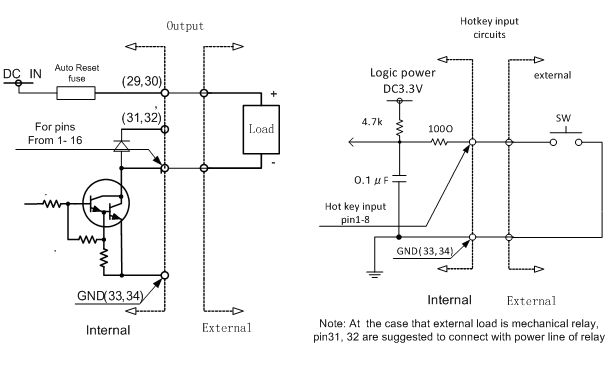

Interface Circuit
